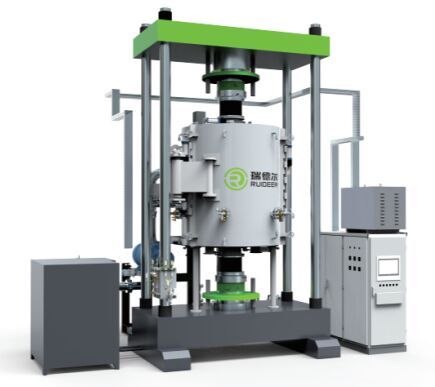

Vacuum Hot Press Sintering Furnace Providing Horizontal Vertical Configurations and Adjustable Maximum Temperatures up to 2400 Celsius

Menşe yeri:

Çin

Marka adı:

Ruideer

Sertifika:

Bizimle İletişim

Bir İndirim İste

Vacuum Hot Press Sintering Furnace Providing Horizontal Vertical Configurations and Adjustable Maximum Temperatures up to 2400 Celsius

Ürün Ayrıntıları

Tip:

elektrikli fırın

Koç Malzemesi:

Grafit veya TZM

Minimum Sipariş Miktarı:

Ön Aşama Pompası+Kök Pompası+Difüzyon Pompası

Ürün adı:

Vakum sıcak basın sinterleme fırını

Kontrol sistemi:

PLC'ler

Maks. çalışma sıcaklığı:

2200°C

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 Takım

Ambalaj bilgileri

tahta sandık

Teslim süresi

4-5 ay

Ödeme koşulları

T/T

Yetenek temini

3 Takım / Ay

İLGİLİ ÜRÜNLER

Video

Akıllı Gaz Basınçlı Sinterleme Fırını ile Çimento/Tungsten Karbid Kesme Aracı'nın Anahtar Projesi

En İyi Fiyatı Alın

Maksimum yoğunluk: Neden Ruideer 6MPa Sinter-HIP Fırını, Premium Karbid Eklemeler ve Çubuklar için nihai çözümdür

En İyi Fiyatı Alın

Video

Powder metallurgy cemented carbide Pressure Sintering Furnace 6MPA 1600℃

En İyi Fiyatı Alın

Silikon Karbid CVD kaplama fırını, grafit duyarlılığı veya kazma halkası için

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

100T Vacuum Hot Press Sintering Furnace, Standard Effective Working Area 500*500*600mm

The equipment features a double-wall water-cooling structure with horizontal or vertical configurations. Available in various sizes for laboratory and industrial production applications, it supports single or dual pressure head configurations with dual force/displacement control modes.

Maximum temperatures can be adjusted to multiple levels including 1400°C, 1600°C, 2000°C, 2200°C, and 2400°C. The hot pressing sintering furnace is widely used for processing ceramic materials such as silicon carbide, boron carbide ceramics, and metal powders.

Features:

Product Name:Vacuum Hot Press Sintering Furnace
Max Temperature : 2200℃
Vacuum Pump:Pre-Stage Pump+Roots Pump+Diffusion Pump
Type: Vacuum Furnace
Ram Material:Graphite or TZM
Vacuum Sintering Furnace
High-Pressure Sintering Furnace
High-Temperature Sintering Furnace

The Main Parameters Of The Equipment:

Loading Standard	Effeective Space Dimension	500500600mm
Vacuum Capability	Cold State Limit Vacuum	<6.67x10- Pa (under conditions of empty furnace, cold state, clean environment, and post-firing)
	Pressure Rise Rate	<2 Pa/h (average value at 3 hours after furnace shutdown, cold state, clean condition, and furnace drying)
	Work Efficiency	Atmospheric pumping to 1 Pa for <40 minutes (cold state, under no-load conditions)
Temperature Indicator	Maximum Operating Temperature	2200°C (temperature measured jointly by thermocouple and linfrared thermometer)
	Heating Rate	Emptyfumace:RT~1500C:>8°C/min; 1500-2200°C:≥7°C/min.
	Insulation/Heating Element Material	Soft-hard composite felt/high-purity isostatic graphite
	Cooling Speed	Empty furnace,2200C to 150Cwithin 430 minutes, with fast cooling below 8oo'C. (Coolingwater conditions: water pressure 2 bar, water temperature26°C in summer, flow rate 30-35 m²/h).
Press System	Maxiumum Mechanical Pressure	100T
Press System	Pressure Control Accuracy	0.1MPa
Navar	Temperature Control	PID intelligent program control and manual control; 30-stage programmable temperature control.

Applications:

Ruideer Vacuum Hot Press Sintering Furnace is widely used for processing ceramic materials such as silicon carbide, boron carbide ceramics, and metal powders.
The packaging is also highly secure, with wooden cases ensuring safe delivery and an estimated delivery time of 4-5 months.

Support And Services:

Convenience And Intelligence

The sintering furnace control interface can be monitored via mobile phone, enabling real-time monitoring and understanding of equipment operation status anytime, anywhere.

The fully automated one-click operation function supports single-operator supervision of multiple devices and intelligent production, with compatibility for ERP management systems.

Comprehensive After-sales Service System

Features a 24/7 hotline. Within 2 hours of receiving a customers fault report, we provide solutions, with on-site repairs arriving within 12 hours for urgent cases.
Our team of 32 experienced professionals handles not only product installation and commissioning but also offers after-sales services and maintenance for sintering furnaces from domestic and international manufacturers.
